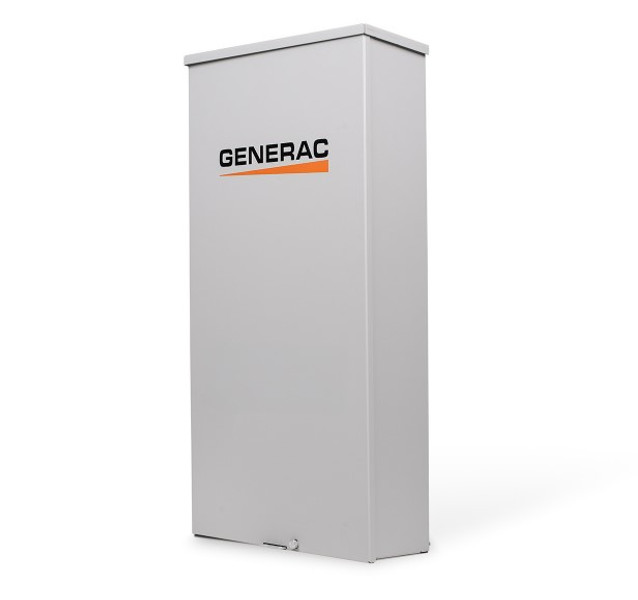

Generac G0099520 200 Amp Service Rated Automatic Transfer Switch 120/240V Single Phase

*For Whole House, Homes with a 200Amp Main Breaker Service, this ATS has the required Service Entrance Disconnect included - ***REPLACES THE RXSW200A3***

Generac G-Series ATS Spec Sheet *Click Here*

DESCRIPTION

This new series of Generac Automatic Transfer Switches is designed for use with single phase generators that utilize an Evolution'" or Power Zone'" 200 Controller. The 100, 150, and 200 Amp open transfer switches are available in single phase, service equipment rated configurations. This series include Generac's whole-house surge protection device (SPD), which is built into the transfer switch.
Generac's integrated whole-house SPD helps protect against damaging surges and transients by blocking them from entering homes or businesses. The SPD has thermally protected metal oxide varistors (MOVs), which help reduce risk of thermal damage. This new series of transfer switch includes a fast mount hanging system to simplify and expedite installations.

STANDARD FEATURES

Service Entrance Rated and Non-Service Entrance Rated Generac Automatic Transfer Switches are housed in an aluminum NEMA Type 3R enclosure, with electrostatically applied and baked powder paint. The Heavy Duty Generac Contactor is an ETL recognized device, designed for years of service. The generator controller handles all timing, sensing, exercising functions, and transfer commands. All transfer switches are covered by a five year limited warranty.
